    Home / Laminate Tops / TC BODY - ESQUIRE

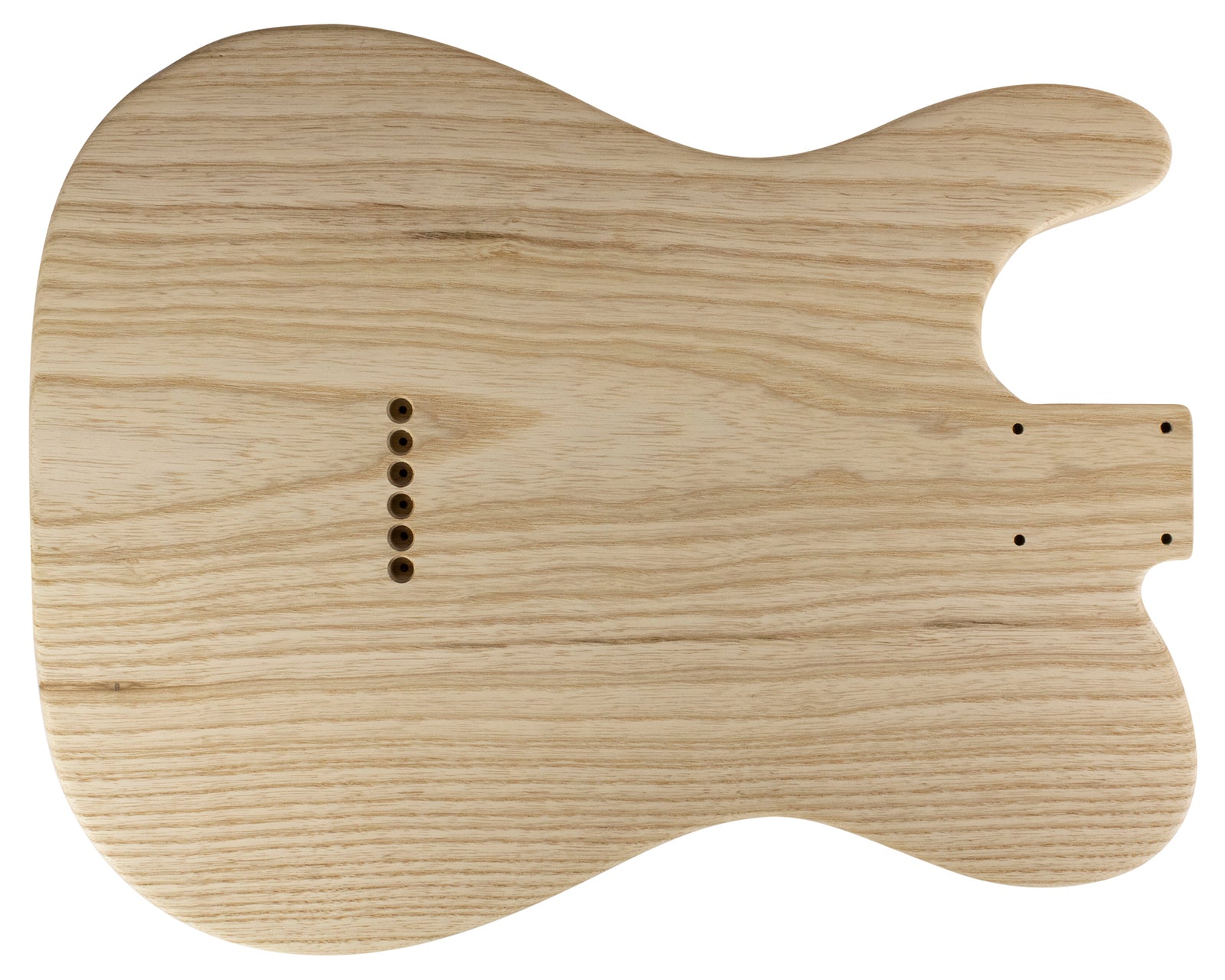

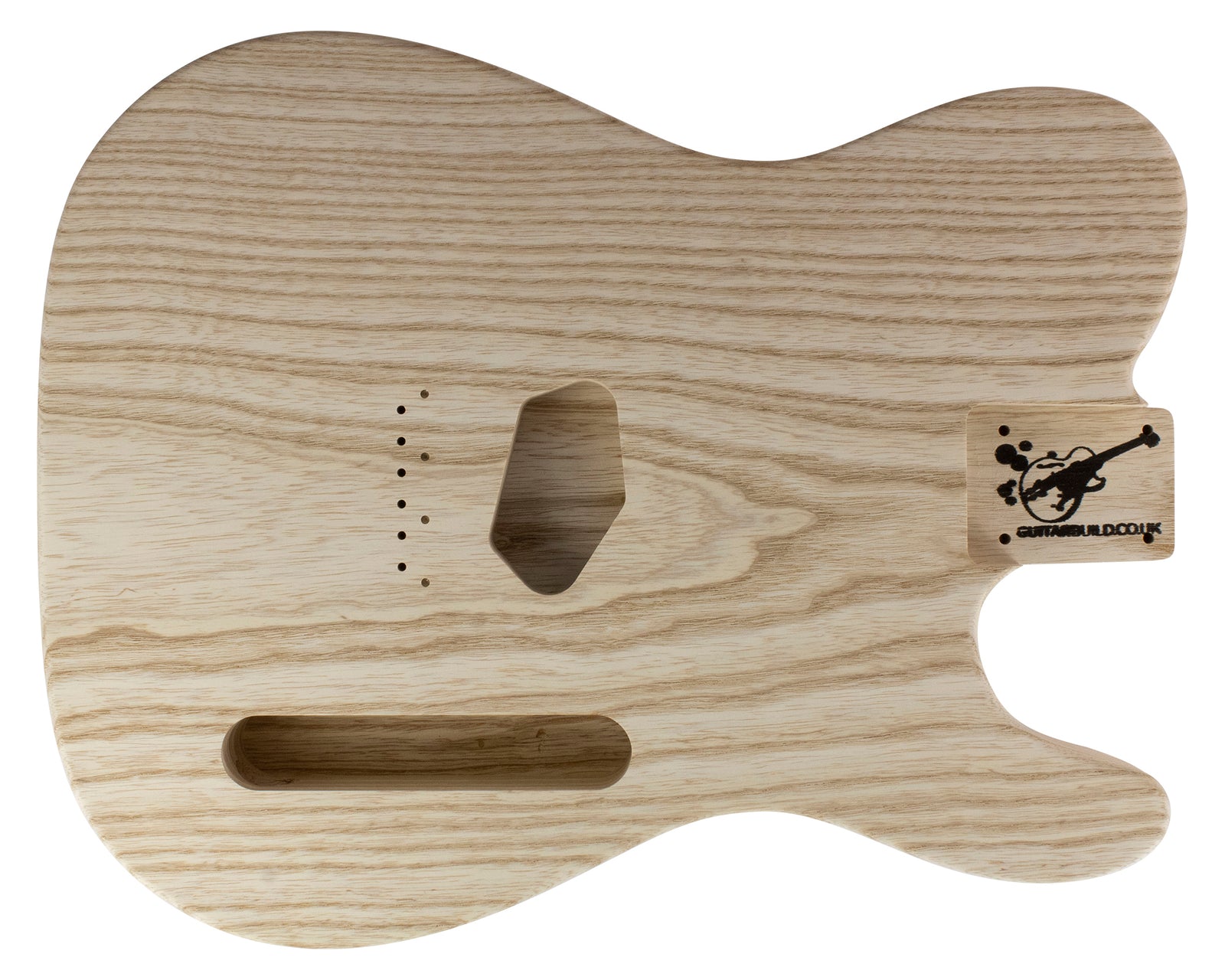

    TC BODY - ESQUIRE-Guitar Bodies - Standard-Guitarbuild
    TC BODY - ESQUIRE-Guitar Bodies - Standard-Guitarbuild
    TC BODY - ESQUIRE-Guitar Bodies - Standard-Guitarbuild
    TC BODY - ESQUIRE-Guitar Bodies - Standard-Guitarbuild

    Product details

    • TC BODY - ESQUIRE
    • This is a reissue spec body
    • PICKUP AT BRIDGE: TC Single
    • PICKUP AT MIDDLE: None
    • PICKUP AT NECK: None
    • BRIDGE: TC 54mm spacing (0990806100 & 0990810000)
    • TREMOLO: None
    • CONTOURS: None
    • JACK: Side 22mm
    • Body thickness: 44.45mm
    • Neck socket: 56mm (flat)
    • Scratchplate available: TC Scratchplate 3
    • Scale length: 25.5”
    • Neck available: Click here
    • Custom rout options available with most products, please email for a quote
    • Want lots of customisable options? Try our custom builder: Click here

    TC BODY - ESQUIRE

    This item is made to order

    £100.00 GBP - £259.00 GBP
    • TC BODY - ESQUIRE
    • This is a reissue spec body
    • PICKUP AT BRIDGE: TC Single
    • PICKUP AT MIDDLE: None
    • PICKUP AT NECK: None
    • BRIDGE: TC 54mm spacing (0990806100 & 0990810000)
    • TREMOLO: None
    • CONTOURS: None
    • JACK: Side 22mm
    • Body thickness: 44.45mm
    • Neck socket: 56mm (flat)
    • Scratchplate available: TC Scratchplate 3
    • Scale length: 25.5”
    • Neck available: Click here
    • Custom rout options available with most products, please email for a quote
    • Want lots of customisable options? Try our custom builder: Click here

    Ask about a change

    Tell us what you'd like changed. We'll email you with availability and a quote.

    TC BODY - ESQUIRE
    View included options

    Your body and selected options are included automatically.
    Guitar body buying guide

    Will my neck fit?

    Start with the neck pocket, then check the scale length. A few measurements now make the rest of your build easier.

    SC & TC explained
    1Match the shapeRounded or squared heel?
    2Check the dimensionsWidth, length and pocket depth.
    3Confirm the scaleUse the specification for your body.

    Two shapes. An important difference.

    SC neck pocket

    Rounded end
    Guitarbuild SC neck pocket diagram showing 56 mm width, 76 mm length and 16 mm depth

    A curved heel matches the curved end of an SC pocket.

    Width56 mm
    Length76 mm
    Depth16 mm

    TC neck pocket

    Squared end
    Guitarbuild TC neck pocket diagram showing 56 mm width, 76 mm length and 16.8 mm depth

    A squared heel matches the squared end of a TC pocket.

    Width56 mm
    Length76 mm
    Depth16.8 mm

    These are the SC and TC examples shown in our neck-pocket guide. Always check the specification of the body you are ordering; other models and bass bodies can differ.

    Already have a neck?

    Measure the heel and compare its shape and dimensions with the body’s neck pocket. A matching width alone does not confirm compatibility.

    Check the scale length too. If you are mixing neck and body types or using a conversion neck, ask us to check the combination before ordering.

    Before you apply a finish

    Check that your neck and hardware fit before finishing your body. Compare the bridge and pickup requirements with the product details.

    For a different rout or another small change, contact the workshop first so we can confirm what is possible and provide a quote.
